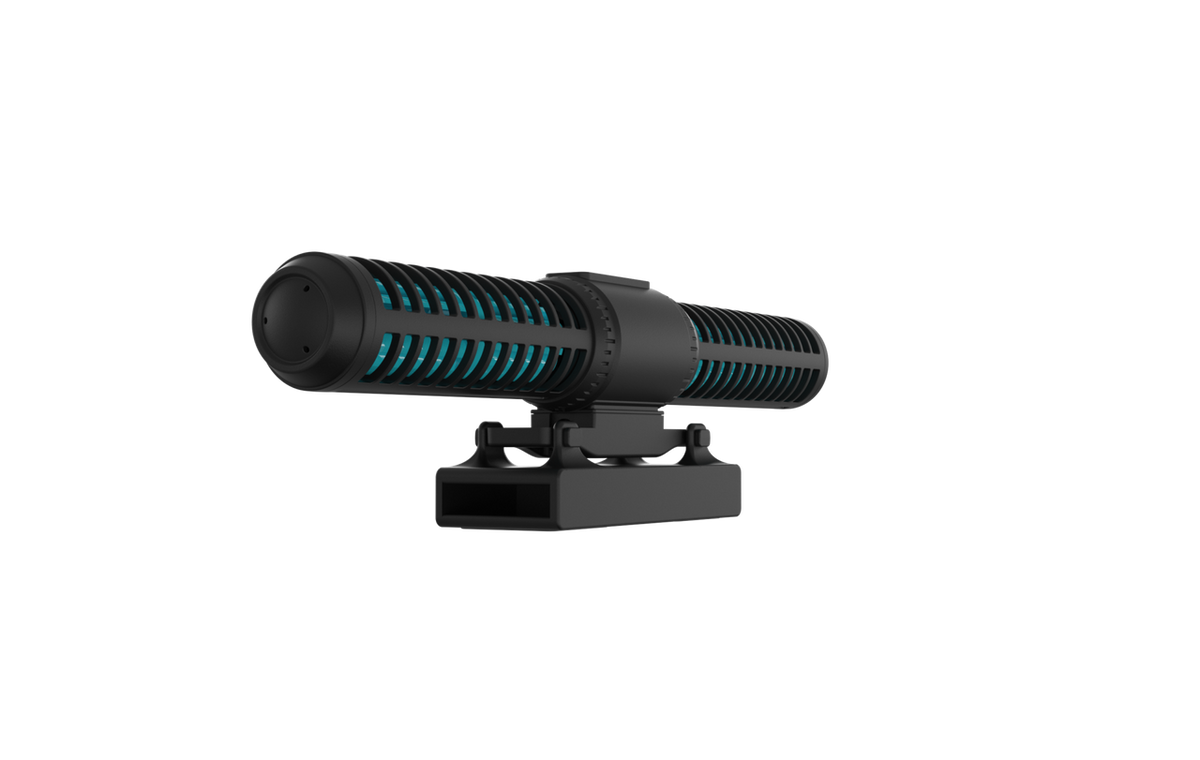

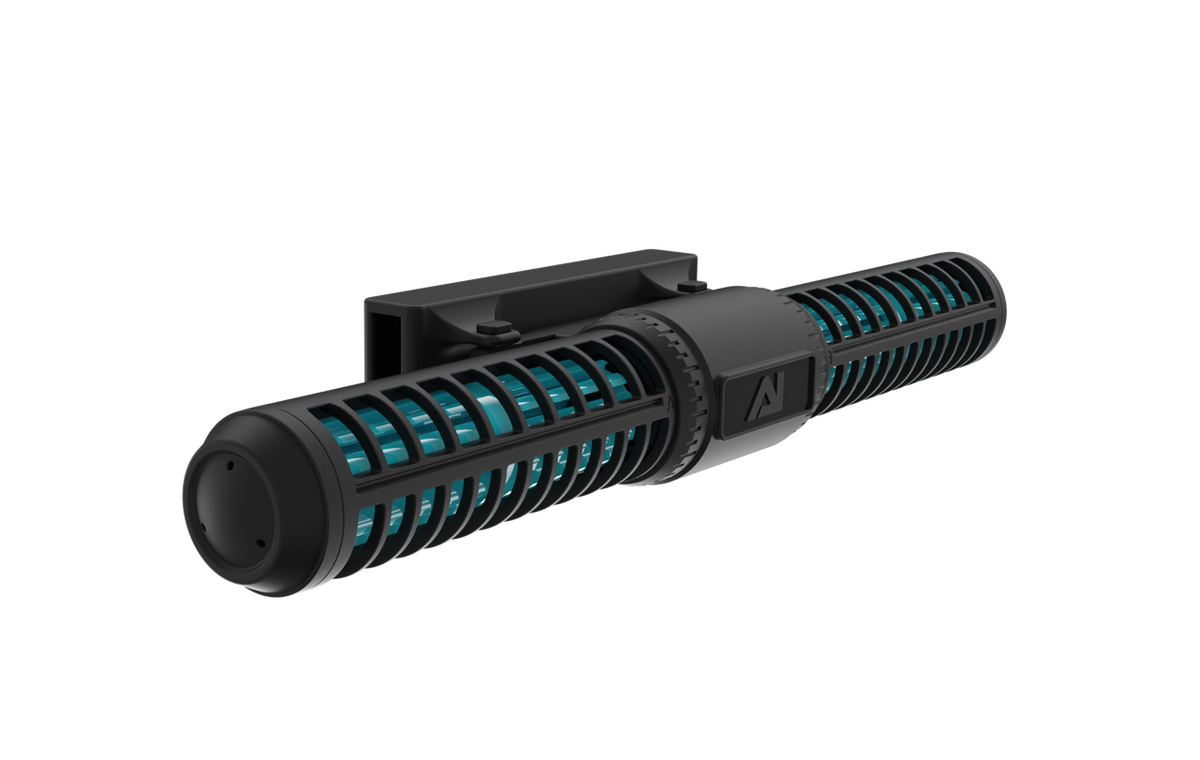

AI Orbit Cross Flow Wave Pump

Ecosystem of Flow

Orbit pumps produce a unique type of flow.  Circling the aquarium with water movement-  like the water that moves within the ocean.  Orbit provides a cross-flow current that simulates the tidal flow experienced on ocean reefs that is an excellent mechanism for lifting excess nutrients from the bottom of the aquarium for removal by filtration.

Like ocean currents, it is not just one type of flow that makes the reef thrive, but really make your aquarium thrive with flows of all types.  When combined with the directional and random flow patterns of our Nero pump line a true recreation of ocean flow can be achieved- powerful, directional, systematic, and chaotic.

Forward and Reverse.

Orbit has the ability to operate in both forward and reverse modes.

• Augment custom flow patterns and programs with reverse operation.
• Use the reverse functionality to create turbulent flow, which helps remove detritus.
• Multiple pumps can be run in opposite directions to augment gyre or circular flow.

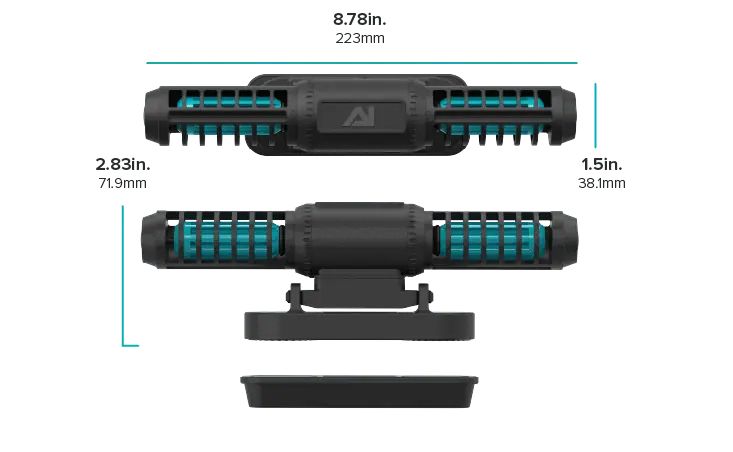

ORBIT 2

DIMENSIONS

Width                                                           223mm  (8.78 in.)

Height                                                         71.9mm  (2.83 in.)

Depth                                                          38.1mm  (1.5 in.)

SPECIFICATIONS

Maximum Glass Thickness                     15mm  (0.59 in.)

Recommended Tank Size                       ≈20-88+ gallons

Power Consumption                                Variable, 25W max

Input                                                            100–240VAC, 50-60Hz, 2A

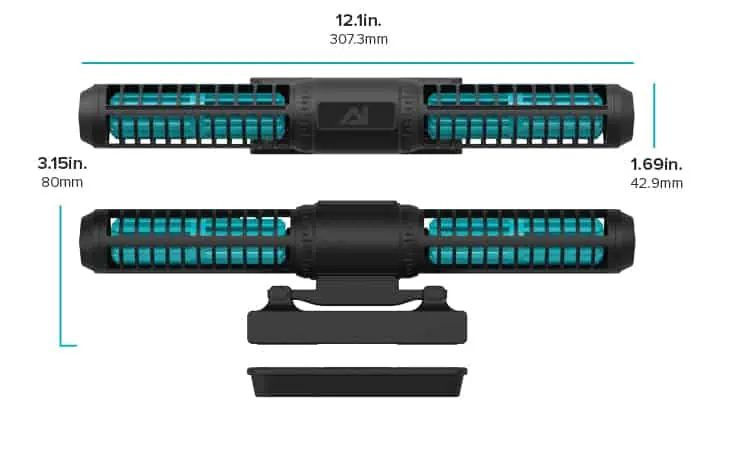

ORBIT 4

DIMENSIONS

Width                                                           307.3mm (12.1 in.)

Height                                                         80mm (3.15 in.)

Depth                                                          42.9mm (1.69 in.)

SPECIFICATIONS

Maximum Glass Thickness                     20mm (0.79 in.)

Recommended Tank Size                       ≈20-120+ gallons

Power Consumption                                Variable, 45W max

Input                                                            100–240VAC, 50-60Hz, 2A
